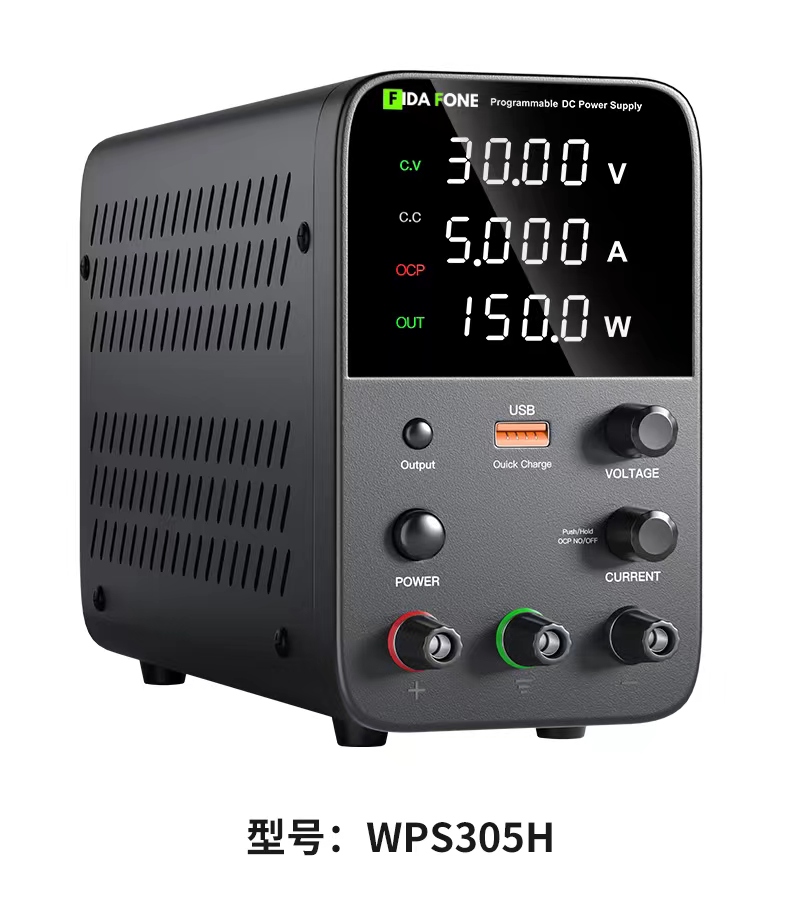

FIDAFONE WPS305H Power Supply

ADVANCED SWITCHING MODE ADJUSTABLE DC POWER SUPPLY 30V 5A-FIDAFONE WPS305H WITH 4 DIGITS LED DISPLAY. Feature: 4 Digital Display Product Paramenters Model WPS305H WPS3010H WPS605H WPS1203H WPS1602H Output Power 150W 300W 300W 360W 320W Output voltage 0~30V 0~30V 0~60V 0~120V 0~160V Output current 0~5A 0~10A 0~5A 0~3A 0~2A Auxiliary functions USB fast charge, output on and off, USB host computer communication(Optional) Protection mode OVP over voltage protection, OCP over current protection, over temperature protection, short circuit alarm stop output. working environment Input voltage：AC 230V/115V±10%；50Hz/60Hz Working temperature：0℃～40℃;relative humidity:<80%RH Storage temperature：-10℃～70℃;relative humidity:<70%RH Constant voltage CV Voltage stability：0.5%±3mV Load stability： 0.5%±3mV Ripple voltage：≤0.5% Vp-p 0 to rated voltage continuously adjustable constant current CC Current stability：0.5%±3mA Load stability： 0.5%±3mA Ripple current：≤0.5% Vp-p Recovery time：≤500μS Temperature coefficient：≤100ppm/℃ 0 to rated current continuously adjustable display 0.4 inch white light four-digit digital tube three groups display Display accuracy：0.5%±digits Display resolution： voltage 0.01V， current 0.001A Size and weight Product size：190(L) x 90(W) x 145(H) mm Packing size：265(L) x 135(W) x 195(H) mm Net weight：1.15Kg Gross weight：1.5Kg 8sets/piece, box size:550*275*405mm,box weight:12.5kg
