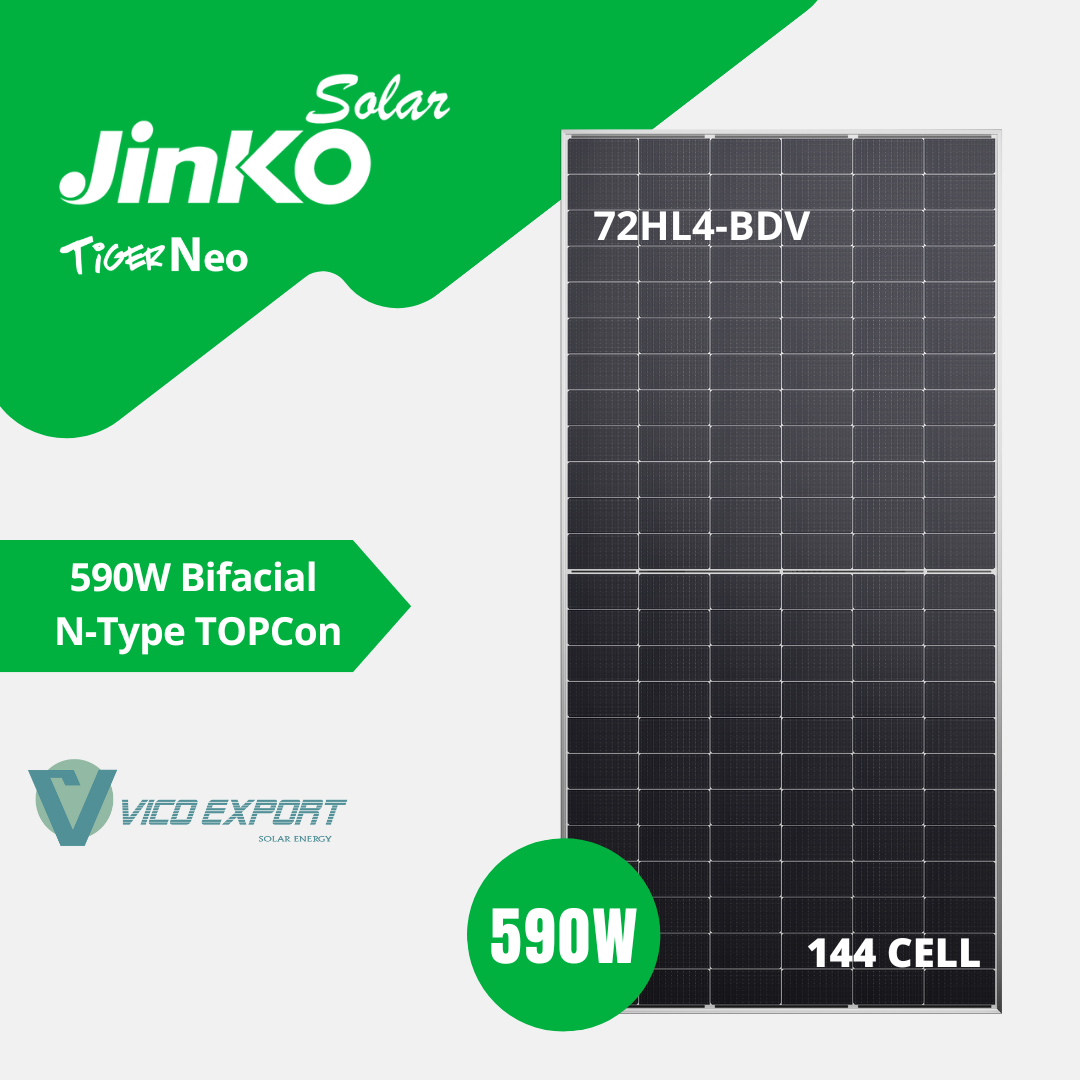

590W Jinko Solar Tiger Neo (JKM595N-72HL4-BDV) N-type Bifacial

Description 590w Jinko Solar N-type Bifacial| Tiger Neo Series 72HL4-BDV KEY FEATURES N-Type Technology with TOPCon: This module features N-Type cells with Tunnel Oxide Passivating Contact (TOPCon) technology, minimizing LID/LeTID degradation and improving performance under low-light conditions. Bifacial Dual Glass Design: Thanks to its bifacial structure and dual-glass build, the module captures sunlight on both sides, increasing total energy generation and enhancing overall system performance. High Power and Efficiency: With a rated output of 590W and a module efficiency of 22.80%, it is ideal for high-performance applications where maximum energy yield is essential. Extreme Weather Resistance: Engineered to withstand up to 5400 Pa front load and 2400 Pa rear load, ensuring durability and stability even in harsh environments. Low Power Degradation: Degradation is just 1% in the first year and only 0.4% annually thereafter, ensuring consistent performance and extended service life for up to 30 years. TECHNICAL SPECIFICATIONS Electrical Data (STC): Nominal Power (Pmax): 590W Optimum Operating Voltage (Vmp): 44.17V Optimum Operating Current (Imp): 13.36A Open Circuit Voltage (Voc): 52.90V Short Circuit Current (Isc): 14.07A Module Efficiency: 23.03% Power Tolerance: 0 ~ 3% Datos Mecánicos: Cell Type: N-Type Monocrystalline TOPCon Cell Configuration: 144 (72 x 2) Dimensions: 2278 × 1134 × 30 mm Weight: 31.0 kg Front and Rear Glass: 2.0 mm tempered glass with anti-reflective coating Frame: Anodized aluminum alloy Junction Box: IP68, 3 bypass diodes Connectors: JK03M / JK03M2 / MC4 / MC4-EVO2 Cables: 4.0 mm², lengths: ( ) 400 mm, (–) 200 mm (customizable) Operating Temperature Range: –40°C to 70°C Temperature Coefficient (Pmax): –0.29%/°C ADDITIONAL BENEFITS International Certifications: Complies with IEC 61215, IEC 61730, ISO 9001, ISO 14001, ISO 45001.Extended Warranty: 12-year product warranty and 30-year linear power warranty.Environmental Resistance: Certified against salt mist, ammonia, and PID – ideal for coastal and agricultural installations. The Jinko Solar Tiger Neo JKM590N-72HL4-BDV panel combines top-tier N-Type TOPCon technology with a bifacial dual-glass design to deliver superior performance, durability, and long-term reliability. Perfect for commercial and utility-scale solar projects. → Visit Jinko Solar product page
