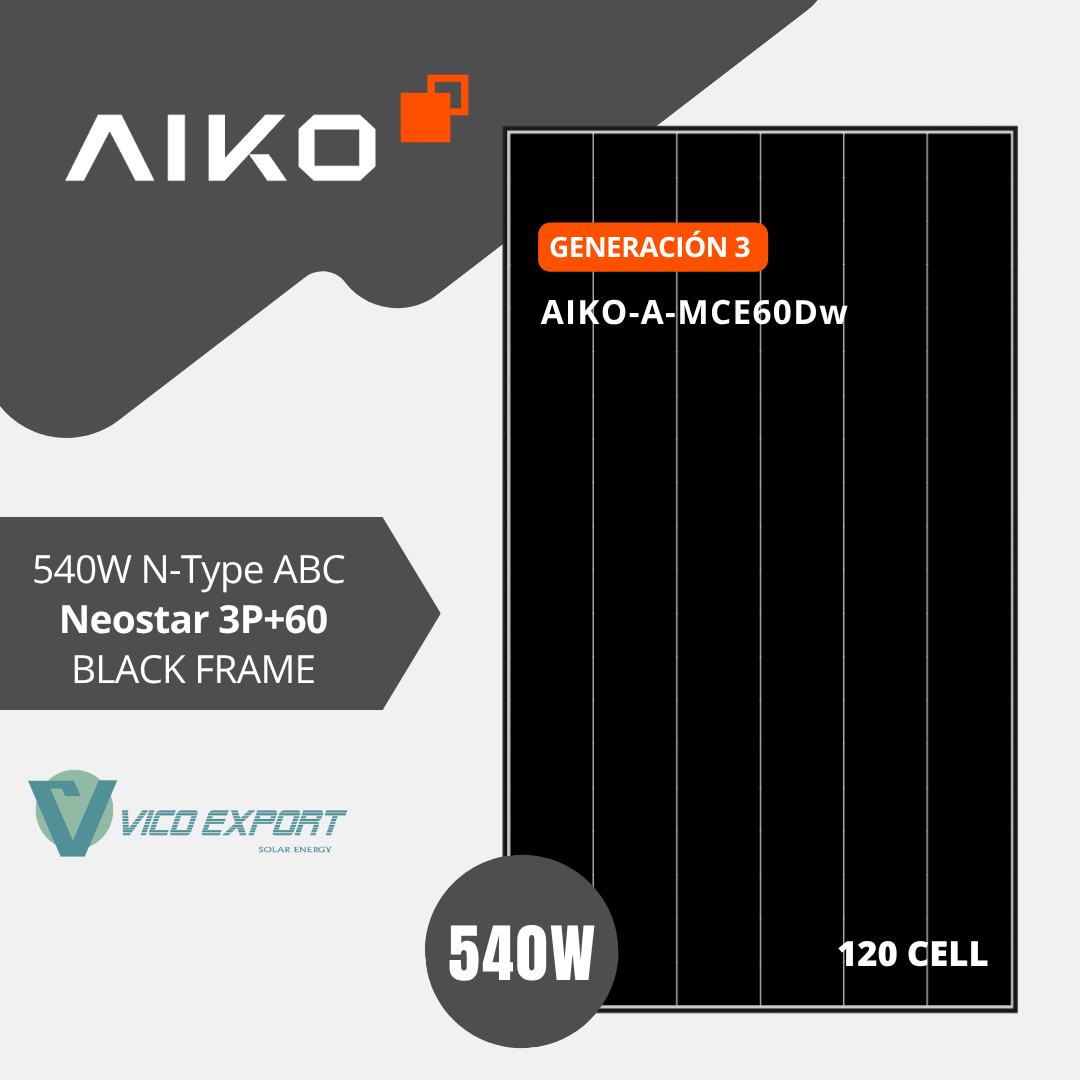

540W Aiko Solar N-Type ABC (AIKO-A-MCE60Dw)

Description 540W AIKO N-Type ABC | Neostar 3P 60 Series (AIKO-A-MCE60Dw) The AIKO 540W Neostar 3P 60 solar panel is a bifacial double-glass photovoltaic module designed for residential, commercial and industrial solar installations seeking high efficiency, reliability and excellent long-term energy performance. This module, with reference AIKO-A540-MCE60Dw, incorporates N-Type ABC technology, an advanced solution that improves solar energy capture, optimises performance under partial shading conditions and enables a module efficiency of 24.4%. Thanks to its double-glass design, black anodised aluminium frame and high mechanical resistance, the AIKO 540W solar panel offers a robust, aesthetic and efficient solution for professional photovoltaic projects. Its 120-cell format, compact dimensions of 1954 × 1134 × 30 mm and 540 W output make it a particularly interesting option for installations where the aim is to maximise power within the available surface area, reduce BOS costs and improve the overall performance of the system. TECHNICAL SPECIFICATIONS Electrical Data (STC): Nominal Power (Pmax): 540 W Optimum Operating Voltage (Vmp): 38.40 V Optimum Operating Current (Imp): 14.07 A Open Circuit Voltage (Voc): 45.60 V Short Circuit Current (Isc): 14.84 A Module Efficiency: 24.4% Power Tolerance: 0 ~ 3% Mechanical Data: Cell Type: N-Type ABC Cell Layout: 120 (6×20) Dimensions: 1954 × 1134 × 30 mm Weight: 27.1 kg ±3% Glass: double-glass, coated semi-tempered glass 2.0 2.0 mm Frame: black anodised aluminium Junction Box: IP68, 3 bypass diodes Connector: MC4-EVO2A Temperature Conditions: Pmax: -0.26%/°C Voc: -0.22%/°C Isc: 0.05%/°C ADDITIONAL BENEFITS International Certifications: IEC 61215, IEC 61730, ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, 2014/35/EU Extended Warranty: 15-year product warranty, extendable to 25 years, and 30-year linear performance warranty.
