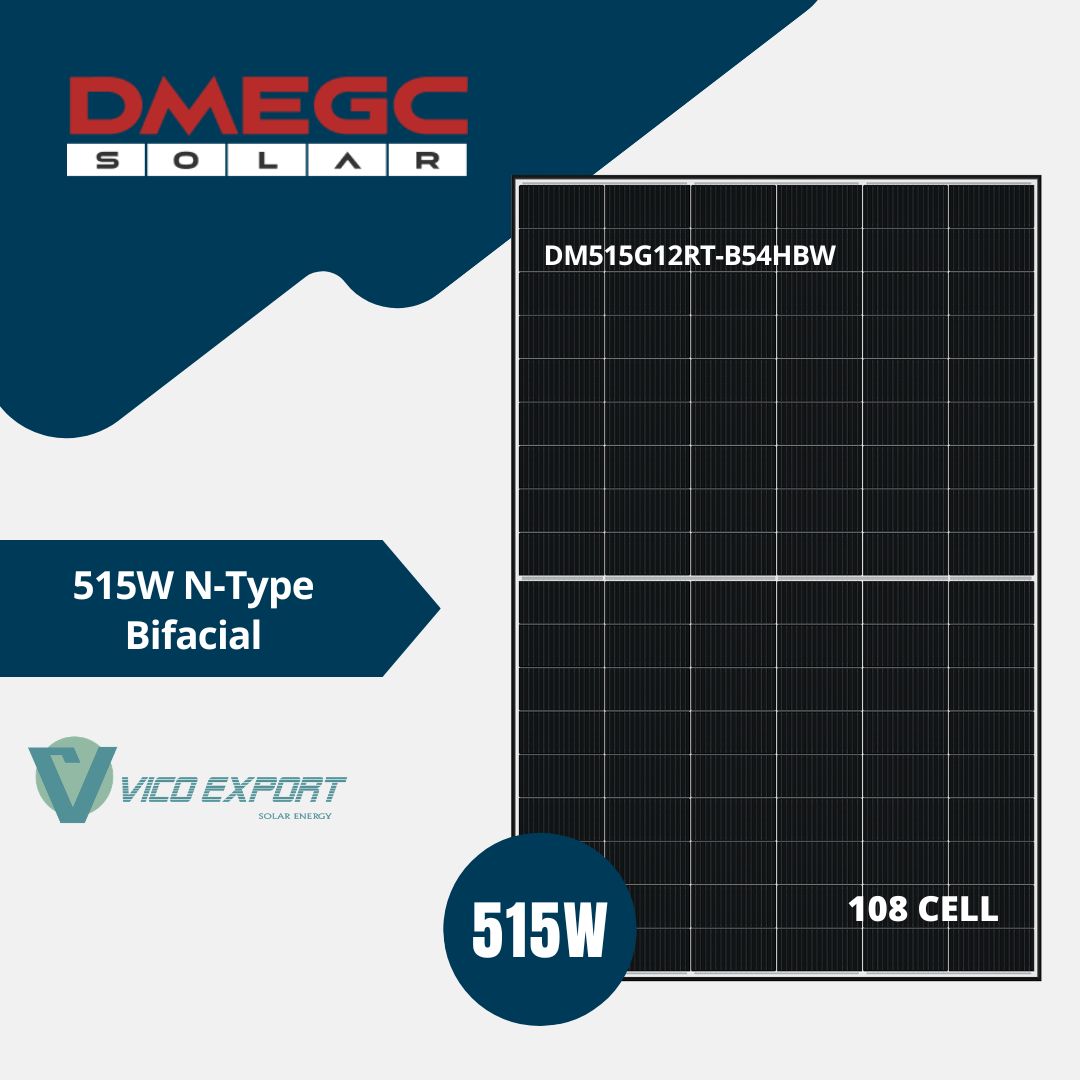

515W DMEGC (DM515G12RT-B54HBW) Bifacial N-Type

Description 515W DMEGC Bifacial N-Type | Infinity RT Series DM515G12RT-B54HBW The DMEGC 515W N-Type Bifacial Double Glass solar panel DM515G12RT-B54HBW is a high-efficiency photovoltaic module designed for residential, commercial and industrial solar installations. This module from the DMEGC Infinity RT series incorporates N-Type monocrystalline cells and bifacial double glass technology, delivering a power output of 515W and an efficiency of 23.0%. Thanks to its bifacial design, it can capture solar radiation from both the front and rear sides of the panel, increasing energy yield in installations with rear-side reflection. With dimensions of 1977 × 1134 × 30 mm and a weight of 27.1 kg, the DMEGC 515W combines power, reliability and mechanical resistance. Its construction with 2 mm semi-tempered front and rear glass, IP68 junction box and maximum system voltage of 1500 V DC make it a suitable solution for professional photovoltaic projects. TECHNICAL SPECIFICATIONS Electrical Data (STC): Maximum power: 515W Module efficiency: 23.0% Maximum power voltage: 34.61 V Maximum power current: 14.88 A Open-circuit voltage: 40.75 V Short-circuit current: 15.83 A Power tolerance: 0 ~ 3% Maximum system voltage: 1500 V DC Mechanical Data: Cell type: N-Type monocrystalline Number of cells: 108 cells Dimensions: 1977 × 1134 × 30 mm Weight: 27.1 kg Front glass: 2 mm semi-tempered glass with anti-reflective coating Rear glass: 2 mm semi-tempered glass Junction box: IP68 Connector: PV-ZH202B or MC4-EVO 2A Temperature Conditions: Pmax coefficient: -0.29%/ºC Voc coefficient: -0.25%/ºC Isc coefficient: 0.048%/ºC Operating temperature: -40 ºC to 85 ºC ADDITIONAL BENEFITS The DMEGC 515W N-Type Bifacial Double Glass solar panel offers an efficient and reliable solution for photovoltaic installations that require high-quality modules, strong mechanical resistance and low long-term degradation. Its N-Type technology, bifacial double glass design and 30-year linear power warranty make it a competitive option for professional installers looking for solar panels ready for demanding projects.
